Everdigm attachment range
Available through GIS in Guyana. Each attachment links to a dedicated spec page — download the full catalogue, then request a quote for your carrier and application. Specifications are indicative and confirmed on quotation.
Hydraulic Breakers
Everdigm’s core line — the EHB series of rock and concrete breakers for excavator carriers.
- EHB range covers carriers from 0.6 to 140 tonnes
- 20–30 tonne class is our priority fit (EHB20/25/30)
- Dual-speed control, anti-blank-blow, auto stop/start
- High-pressure accumulator on EHB17 and larger
| Model | Carrier class | Oil flow | Blow rate |
|---|---|---|---|
| EHB17 | 14–24 t | 110–170 lpm | 500–750 bpm |
| EHB20 | 16–25 t | 100–150 lpm | 440–700 bpm |
| EHB25 | 20–30 t | 130–180 lpm | 430–650 bpm |
| EHB30 | 26–35 t | 170–240 lpm | 400–680 bpm |
Crushers
Concrete and demolition crushers for primary and secondary crushing.
- Crushing force 56–85 tonnes at the tip
- For demolition, recycling and concrete processing
- Rebar-cutting blades
| Model | Carrier class | Crushing force | Oil flow |
|---|---|---|---|
| EHP16 | 13–20 t | 56 t | 100–180 lpm |
| EHP19 | 16–25 t | 59 t | 150–250 lpm |
| EHP22 | 20–28 t | 70 t | 150–250 lpm |
| EHP32 | 28–36 t | 85 t | 200–300 lpm |
Pulverisers
Secondary pulverisers for concrete processing and rebar separation.
- Efficient concrete reduction
- Separates rebar for recycling
- 360° rotating options
| Model (rotatable) | Carrier class | Crushing force | Weight |
|---|---|---|---|
| EHP16 | 13–16 t | 56 t | 1,250 kg |
| EHP20 | 17–25 t | 61 t | 1,817 kg |
| EHP25 | 20–27 t | 73 t | 2,517 kg |
| EHP35 | 28–36 t | 85 t | 3,017 kg |
Grabs & Grapples
Selector and sorting grabs for demolition, scrap and material handling.
- Demolition and sorting duty
- Robust tine construction
- Rotating versions available
| Model | Carrier class | Weight | Max closing force |
|---|---|---|---|
| EPG05A | 4–8 t | 385 kg | 2.2 t |
| EPG08A | 7–10 t | 530 kg | 3.0 t |
| EPG14 | 11–16 t | 1,086 kg | 6.1 t |
| EPG20 | 18–25 t | 1,494 kg | 7.3 t |
| EPG30 | 25–38 t | 2,370 kg | 8.6 t |
Quick Couplers
Couplers for fast, safe attachment changes on the carrier.
- Quick attachment swaps
- Improves machine utilisation
- Carrier-matched
| Model (EQD full-auto) | Weight | Mountable pin-to-pin |
|---|---|---|
| EQD05 | 74–87 kg | 217–310 mm |
| EQD08 | 103–120 kg | 270–380 mm |
| EQD14 | 170–206 kg | 355–432 mm |
| EQD22 | 349–390 kg | 427–525 mm |
| EQD30 | 551–580 kg | 455–591 mm |
| EQD45 | 740–892 kg | 550–640 mm |

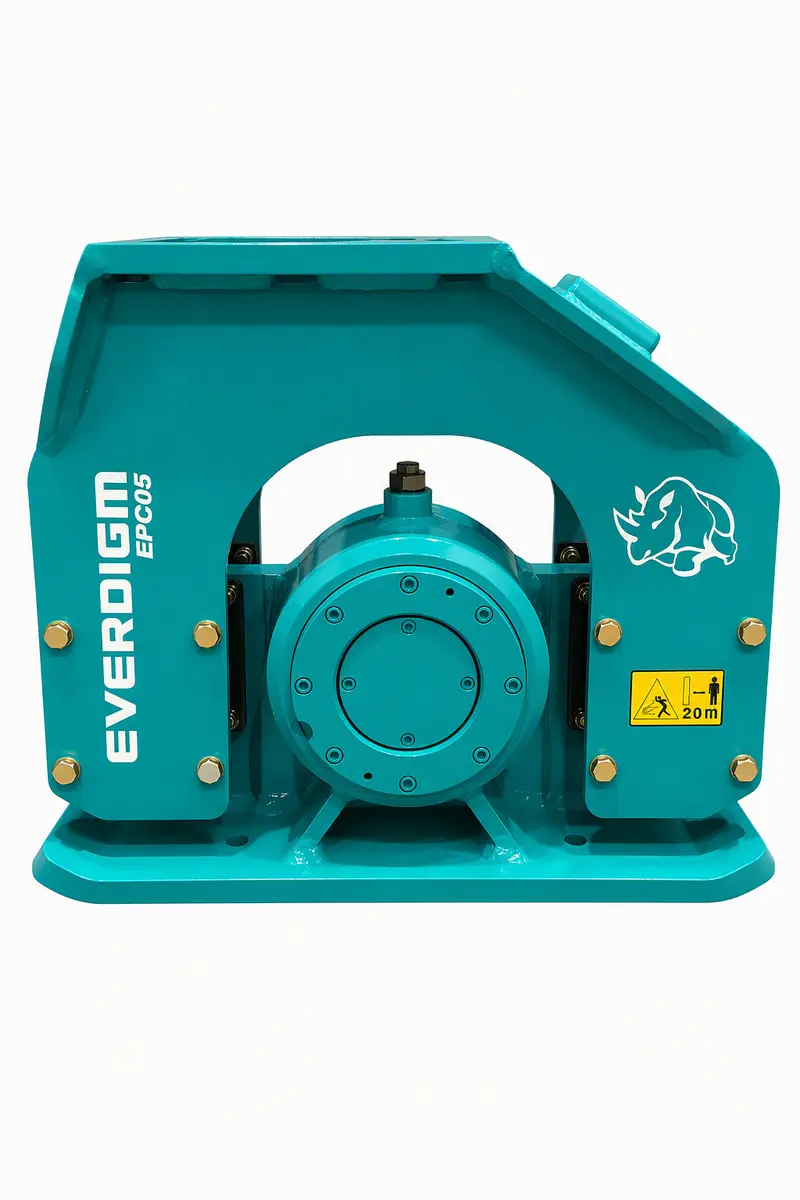

Compactors
Excavator-mounted plate compactors for trenches and slopes.
- Trench and embankment compaction
- Vibratory action
- Reaches where rollers cannot
| Model | Impulse force | Weight | Oil flow |
|---|---|---|---|
| EPC05 | 2.1 t | 260–280 kg | 45–65 lpm |
| EPC10 | 4.0 t | 430 kg | 50–120 lpm |
| EPC15 | 6.4 t | 689 kg | 80–170 lpm |
| EPC20 | 11.2 t | 1,094 kg | 110–200 lpm |
| EPC30 | 17.3 t | 1,502 kg | 160–250 lpm |
